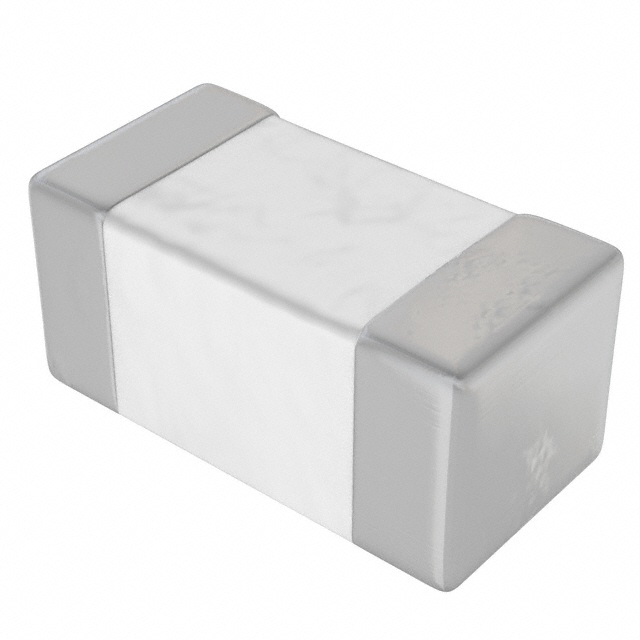

| Part number: | LRC0603CK5N6GV001T |
| Description: | FIXED IND 5.6NH 300MA 300MOHM SM |
| Manufacturer | Johanson Technology |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 4000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Johanson Technology" |
| Tolerance | ±10% |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Type | Multilayer |
| Operating Temperature | -55°C ~ 100°C |
| DC Resistance (DCR) | 300mOhm Max |
| Q @ Freq | 8 @ 100MHz |
| Frequency - Self Resonant | 4.6GHz |
| Material - Core | Ceramic |
| Inductance Frequency - Test | 100 MHz |
| Supplier Device Package | 0603 (1608 Metric) |
| Height - Seated (Max) | 0.037" (0.95mm) |
| Inductance | 5.6 nH |
| Current Rating (Amps) | 300 mA |
|
