| Part number: | XP4024EM |
| Description: | MOSFET N-CH 30V 18.5A 8-SO |
| Manufacturer | YAGEO XSEMI |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "YAGEO XSEMI" |

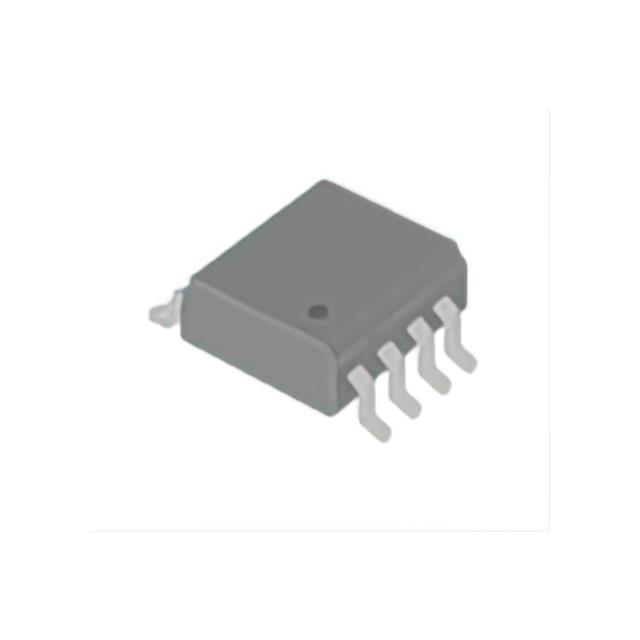

| Package / Case | 8-SOIC |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 18.5A (Ta) |
| Rds On (Max) @ Id, Vgs | 4.5mOhm @ 18A, 10V |
| Power Dissipation (Max) | 2.5W (Ta) |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Supplier Device Package | 8-SO |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 30 V |
| Gate Charge (Qg) (Max) @ Vgs | 28 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 2720 pF @ 15 V |
|
