TYPE	DESCRIPTION
Mfr	"YAGEO XSEMI"

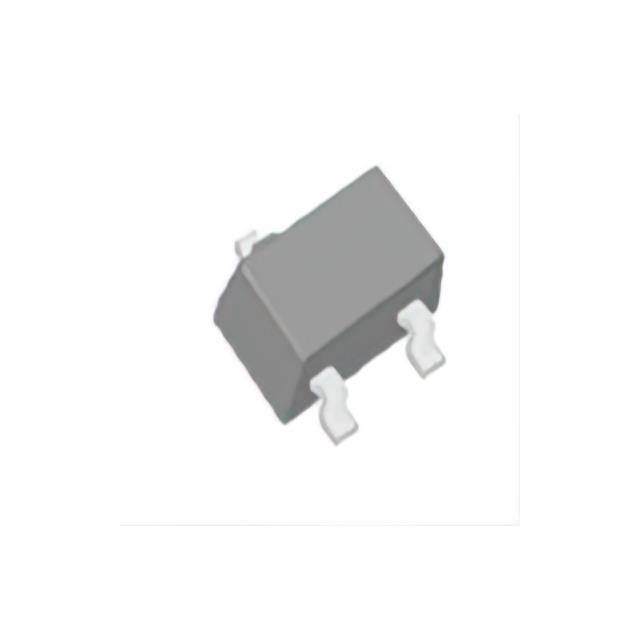

Package / Case	TO-236-3, SC-59, SOT-23-3
Mounting Type	Surface Mount
Operating Temperature	-55°C ~ 150°C (TJ)
Technology	MOSFET (Metal Oxide)
FET Type	N-Channel
Current - Continuous Drain (Id) @ 25°C	6.4A (Ta)
Rds On (Max) @ Id, Vgs	22mOhm @ 6A, 4.5V
Power Dissipation (Max)	1.38W (Ta)
Vgs(th) (Max) @ Id	1V @ 250µA
Supplier Device Package	SOT-23
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Vgs (Max)	±8V
Drain to Source Voltage (Vdss)	20 V
Gate Charge (Qg) (Max) @ Vgs	35.2 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds	2430 pF @ 10 V
