| Part number: | CD4002BCN |
| Description: | IC GATE NOR 2CH 4-INP 14MDIP |
| Manufacturer | Sanyo Semiconductor/onsemi |
| Encapsulation | Bag |
| Quantity | 25 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Sanyo Semiconductor/onsemi" |

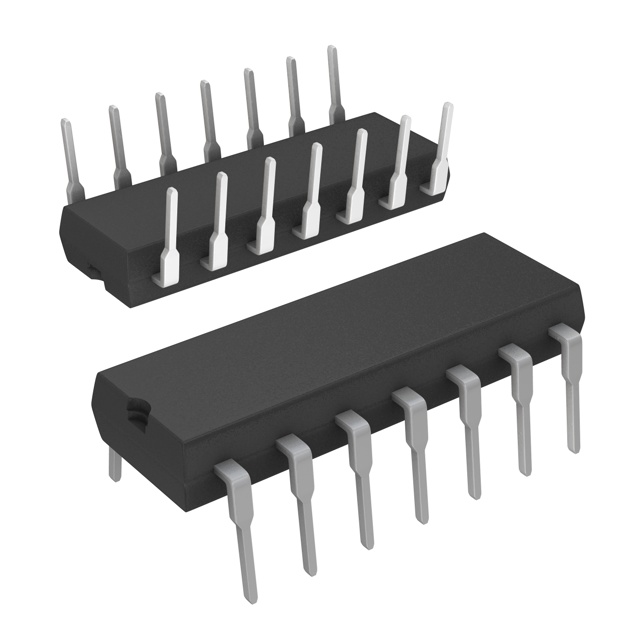

| Package / Case | 14-DIP (0.300", 7.62mm) |
| Mounting Type | Through Hole |
| Logic Type | NOR Gate |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Supply | 3V ~ 15V |
| Current - Output High, Low | 3.4mA, 3.4mA |
| Number of Inputs | 4 |
| Supplier Device Package | 14-MDIP |
| Input Logic Level - High | 3.5V ~ 11V |
| Input Logic Level - Low | 1.5V ~ 4V |
| Max Propagation Delay @ V, Max CL | 70ns @ 15V, 50pF |
| Number of Circuits | 2 |
| Current - Quiescent (Max) | 1 µA |
|
