| Part number: | AS02708CO-R |

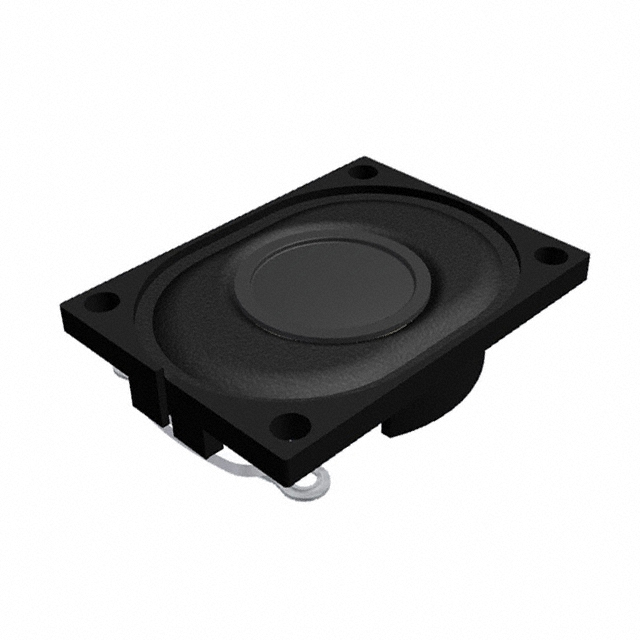

| Description: | SPEAKER 8OHM 1W TOP PORT 80DB |
| Manufacturer | PUI Audio, Inc. |
| Encapsulation | Tray |
| Quantity | 50 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "PUI Audio, Inc." |
| Size / Dimension | 1.063" L x 0.787" W (27.00mm x 20.00mm) |
| Shape | Oval, Rectangular Frame |
| Type | General Purpose |
| Technology | Magnetic |
| Material - Cone | Cloth |
| Material - Magnet | Nd-Fe-B |
| Termination | Solder Eyelet(s) |
| Frequency - Self Resonant | 750Hz |
| Port Location | Top |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Impedance | 8 Ohms |
| Power - Max | 3 W |
| Power - Rated | 1 W |
| Frequency Range | 250 Hz ~ 20 kHz |
| Efficiency - dBA | 80.00 |
| Efficiency - Testing | 1W/500mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
|
