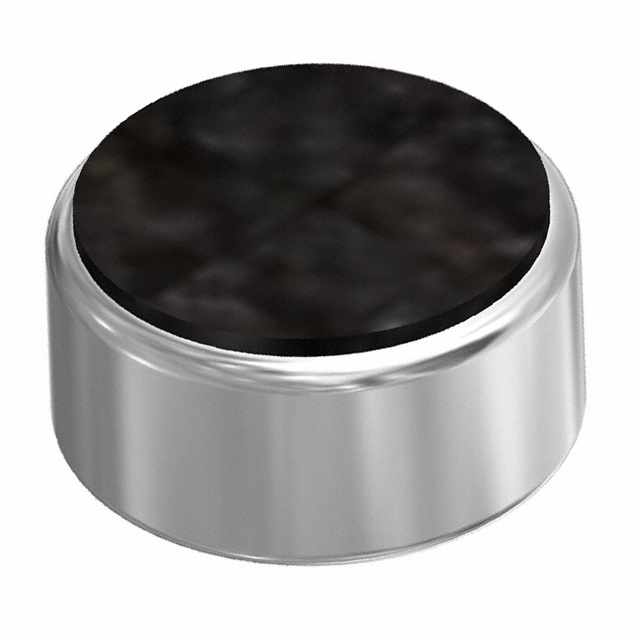

| Part number: | AOM-4542L-R |
| Description: | MIC COND ANLG OMNI -42DB 0.382"D |
| Manufacturer | PUI Audio, Inc. |
| Encapsulation | Bulk |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "PUI Audio, Inc." |
| Output Type | Analog |
| Size / Dimension | 0.382" Dia (9.70mm) |
| Sensitivity | -42dB ±3dB |
| Shape | Circular |
| Type | Electret Condenser |
| S/N Ratio | 60dB |
| Termination | Solder Pads |
| Direction | Omnidirectional |
| Port Location | Top |
| Height (Max) | 0.185" (4.70mm) |
| Voltage - Rated | 1.5 V |
| Impedance | 2.2 kOhms |
| Current - Supply | 500 µA |
| Voltage Range | 1.5 V ~ 10 V |
| Frequency Range | 30 Hz ~ 15 kHz |
|
