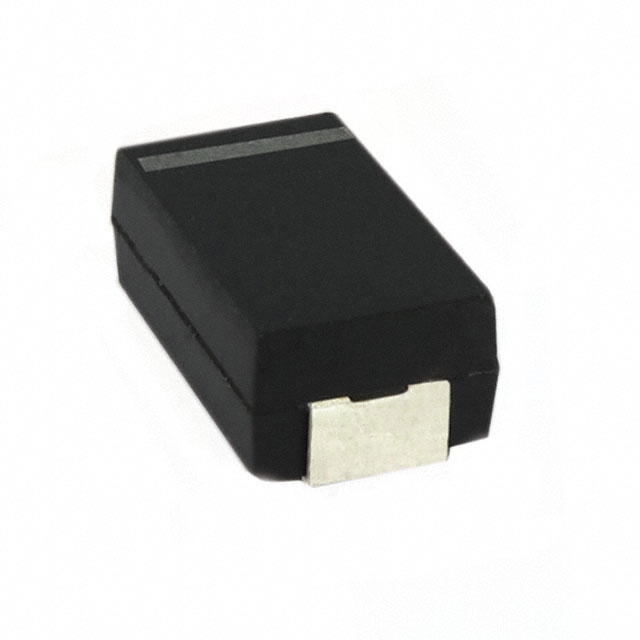

| Part number: | ECASD61C107M012KA0 |
| Description: | CAP ALUM POLY 100UF 20% 16V SMD |
| Manufacturer | TOKO / Murata |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "TOKO / Murata" |
| Tolerance | ±20% |
| Package / Case | 2917 (7343 Metric) |
| Size / Dimension | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Type | Polymer |
| Operating Temperature | -40°C ~ 105°C |
| Applications | General Purpose |
| ESR (Equivalent Series Resistance) | 12mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Surface Mount Land Size | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Height - Seated (Max) | 0.122" (3.10mm) |
| Capacitance | 100 µF |
| Voltage - Rated | 16 V |
| Ripple Current @ High Frequency | 2.5 A @ 100 kHz |
|
