| Part number: | AO3401A |
| Description: | 30V 4.1A 65MR@10V,4.2A 350MW 1.3 |
| Manufacturer | UMW |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3000 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "UMW" |

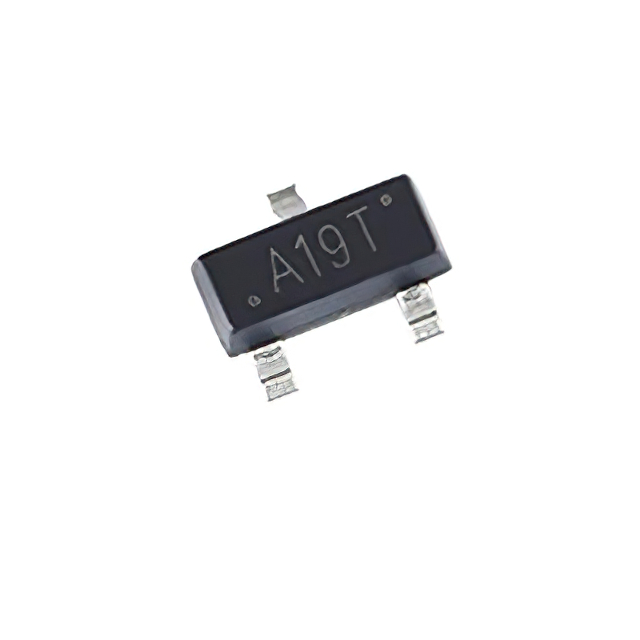

| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 4.2A (Ta) |
| Rds On (Max) @ Id, Vgs | 50mOhm @ 4.2A, 10V |
| Power Dissipation (Max) | 1.4W (Ta) |
| Vgs(th) (Max) @ Id | 1.3V @ 250µA |
| Supplier Device Package | SOT-23 |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 10V |
| Vgs (Max) | ±12V |
| Drain to Source Voltage (Vdss) | 30 V |
| Gate Charge (Qg) (Max) @ Vgs | 9.4 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 954 pF @ 15 V |
|
