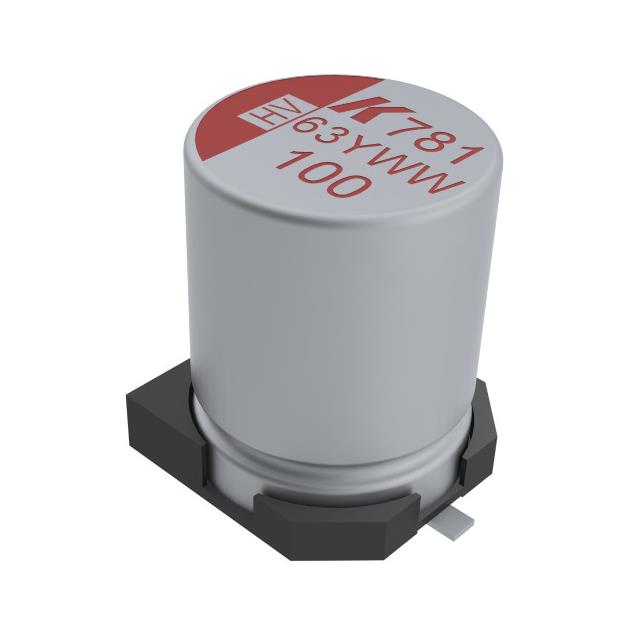

| Part number: | A781MN686M1JLAS035 |
| Description: | CAP ALUM HYB 68UF 20% 63V SMD |
| Manufacturer | TOKIN (KEMET) |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "TOKIN (KEMET)" |
| Tolerance | ±20% |
| Package / Case | Radial, Can - SMD |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Mounting Type | Surface Mount |
| Type | Hybrid |
| Operating Temperature | -55°C ~ 135°C |
| Applications | Automotive |
| Ratings | AEC-Q200 |
| ESR (Equivalent Series Resistance) | 35mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 135°C |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Capacitance | 68 µF |
| Voltage - Rated | 63 V |
| Ripple Current @ Low Frequency | 1.298 A @ 100 Hz |
| Ripple Current @ High Frequency | 5.9 A @ 100 kHz |
|
