| Part number: | ND030A |

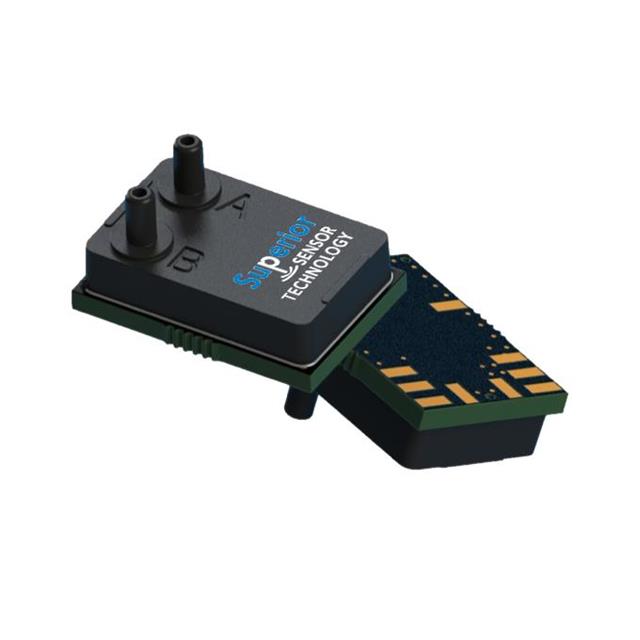

| Description: | SENSOR 30PSIA 0.08" 16BIT |
| Manufacturer | Superior Sensor Technology |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 256 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Superior Sensor Technology" |
| Features | Temperature Compensated |
| Package / Case | 11-SMD, No Lead, Top Port |
| Output Type | I2C, SPI |
| Mounting Type | Surface Mount |
| Output | 16 b |
| Operating Pressure | 30PSI (206.84kPa) |
| Pressure Type | Absolute |
| Accuracy | ±0.25% |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply | 2.8V ~ 3.5V |
| Port Size | Male - 0.08" (2.13mm) Tube, Dual |
| Applications | Board Mount |
| Port Style | Barbless |
| Maximum Pressure | 100PSI (689.48kPa) |
|
