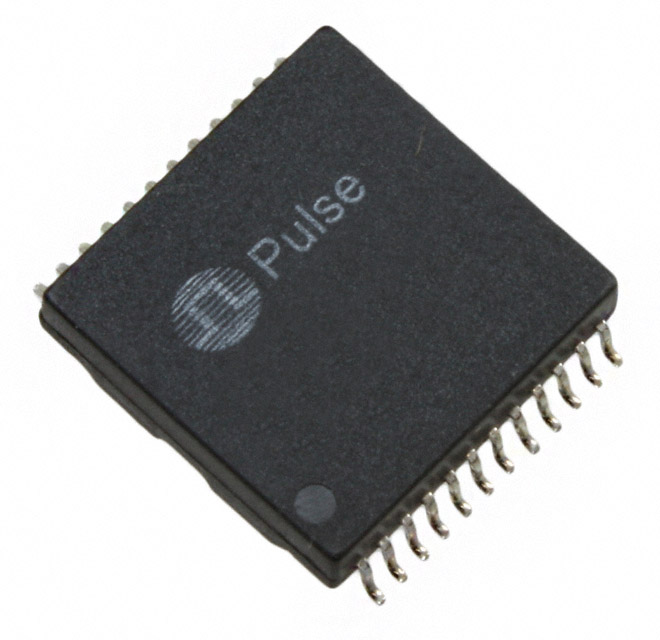

| Part number: | HX1294NL |
| Description: | MODULE XFRMR LAN 10/100 SMD |
| Manufacturer | Pulse Larsen Antenna |
| Encapsulation | Tube |
| Quantity | 35 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Pulse Larsen Antenna" |
| Inductance | 325µH |
| Size / Dimension | 0.538" L x 0.599" W (13.67mm x 15.21mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Transformer Type | LAN 10/100 Base-T |
| Turns Ratio - Primary:Secondary | 1CT:1CT |
| Height - Seated (Max) | 0.241" (6.12mm) |
|
