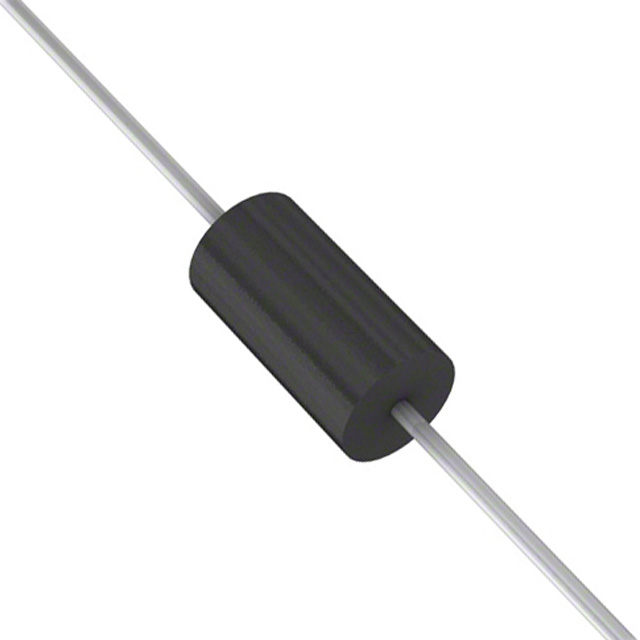

| Part number: | PG202R_R2_00001 |
| Description: | DIODE GEN PURP 200V 2A DO15 |
| Manufacturer | PANJIT |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 4000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "PANJIT" |
| Package / Case | DO-204AC, DO-15, Axial |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 150 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 35pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 2A |
| Supplier Device Package | DO-15 |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 2 A |
| Current - Reverse Leakage @ Vr | 1 µA @ 200 V |
|
