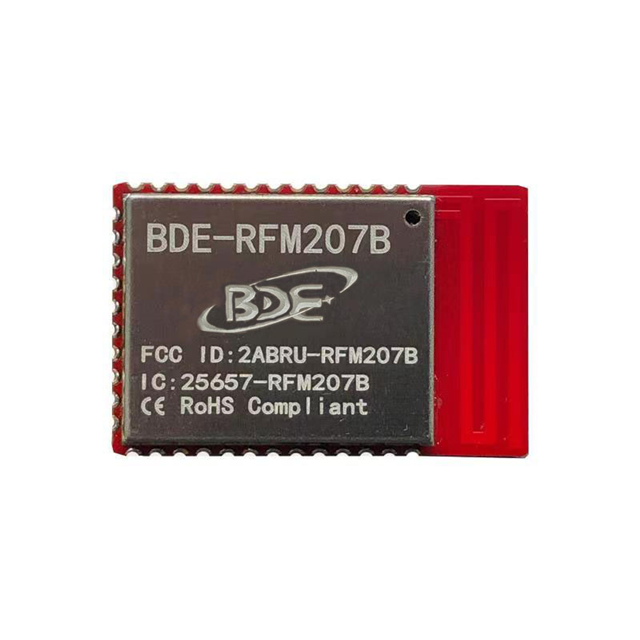

| Part number: | BDE-RFM207B |
| Description: | RF TXRX MODULE BT INT PCB SMD |
| Manufacturer | BDE Technology |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "BDE Technology" |
| Package / Case | 36-SMD Module |
| Sensitivity | -102dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz |
| Memory Size | 352kB Flash, 80kB RAM |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.8V ~ 3.8V |
| Power - Output | 5dBm |
| Data Rate | 2Mbps |
| Protocol | Bluetooth Mesh, Bluetooth 5.2, Thread, Zigbee 3.0, 6LoWPAN, IEEE 802.15.4 |
| Current - Receiving | 7.3mA |
| Current - Transmitting | 7.9mA ~ 10.2mA |
| Antenna Type | Integrated, PCB |
| Utilized IC / Part | CC2652RB |
| Modulation | DSSS, O-QPSK, GFSK |
| RF Family/Standard | Bluetooth, Zigbee, Thread |
| Serial Interfaces | I2C, I2S, SPI, UART |
| DigiKey Programmable | Not Verified |
|
