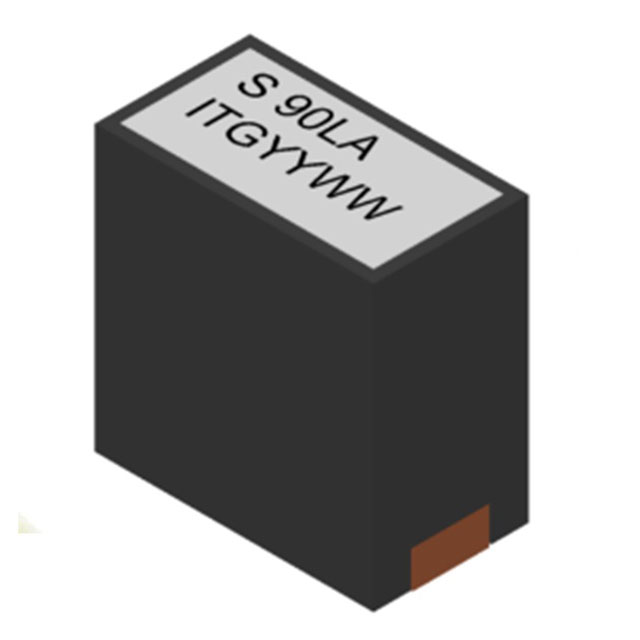

| Part number: | SLA36385A-330L |
| Description: | FIXED IND 330NH 63A 0.125MOHM SM |
| Manufacturer | ITG Electronics, Inc. |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "ITG Electronics, Inc." |
| Tolerance | ±15% |
| Package / Case | 2-SMD, J-Lead |
| Size / Dimension | 0.354" L x 0.197" W (9.00mm x 5.00mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 130°C |
| DC Resistance (DCR) | 0.125mOhm |
| Current - Saturation (Isat) | 23A |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 500 kHz |
| Supplier Device Package | 2-SMD |
| Height - Seated (Max) | 0.374" (9.50mm) |
| Inductance | 330 nH |
| Current Rating (Amps) | 63 A |
|
