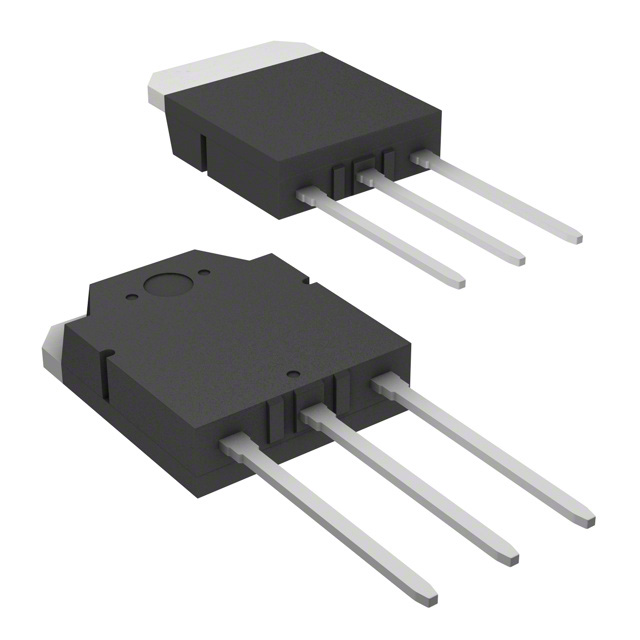

| Part number: | BTA425Z-800CTQ |
| Description: | TRIAC SENS GATE 800V 25A TO3P |
| Manufacturer | WeEn Semiconductors Co., Ltd |
| Encapsulation | Tube |
| Quantity | 30 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "WeEn Semiconductors Co., Ltd" |
| Package / Case | TO-3P-3, SC-65-3 |
| Mounting Type | Through Hole |
| Triac Type | Logic - Sensitive Gate |
| Configuration | Single |
| Operating Temperature | 150°C (TJ) |
| Current - Hold (Ih) (Max) | 50 mA |
| Current - Gate Trigger (Igt) (Max) | 35 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 250A, 275A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.3 V |
| Supplier Device Package | TO-3P |
| Current - On State (It (RMS)) (Max) | 25 A |
| Voltage - Off State | 800 V |
|
