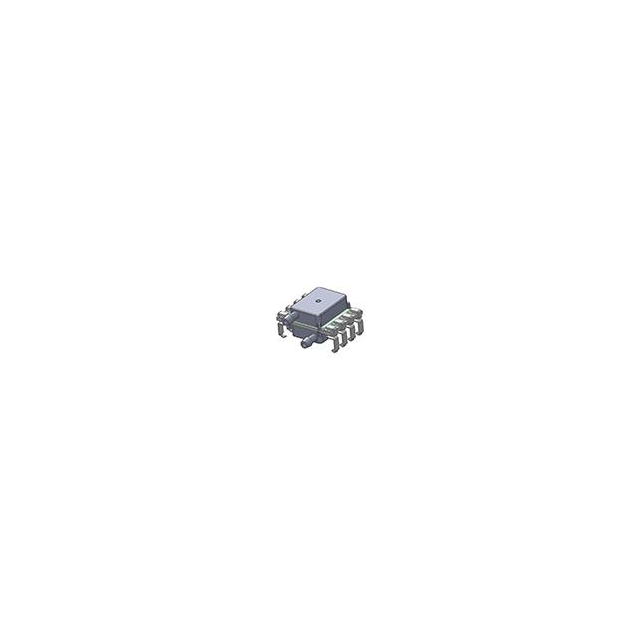

| Part number: | ELVH-M611A-HAND-I-PAA5 |
| Description: | SENSOR 15.95PSIA 0.19" |
| Manufacturer | Amphenol All Sensors |
| Encapsulation | Bulk |
| Quantity | 10 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Amphenol All Sensors" |
| Features | Temperature Compensated |
| Package / Case | 8-DIP (0.524", 13.30mm), Side Port |
| Output Type | Analog Voltage |
| Mounting Type | Through Hole |
| Operating Pressure | 8.7PSI ~ 15.95PSI (60kPa ~ 110kPa) |
| Pressure Type | Absolute |
| Accuracy | ±0.25% |
| Operating Temperature | -20°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 2.7V ~ 5.5V |
| Port Size | Male - 0.19" (4.93mm) Tube |
| Port Style | Barbed |
| Maximum Pressure | 14.94PSI (103kPa) |
|
