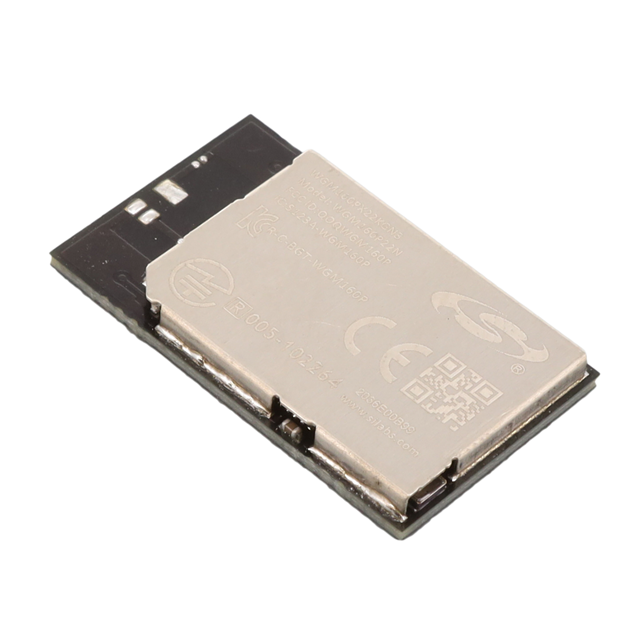

| Part number: | WGM160PX22KGA3 |
| Description: | RF TXRX MODULE WIFI CHIP SMD |
| Manufacturer | Silicon Labs |
| Encapsulation | Strip |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Silicon Labs" |
| Package / Case | 55-SMD Module |
| Sensitivity | -95.5dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.412GHz ~ 2.484GHz |
| Memory Size | 2MB Flash, 512kB RAM |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 3V ~ 3.6V |
| Power - Output | 16dBm |
| Data Rate | 72.2Mbps |
| Protocol | 802.11b/g/n |
| Current - Receiving | 34.5mA ~ 38.5mA |
| Current - Transmitting | 131.4mA ~ 141.3mA |
| Antenna Type | Integrated, Chip |
| RF Family/Standard | WiFi |
| Serial Interfaces | Ethernet, I2C, SPI, UART, USART, USB |
| DigiKey Programmable | Not Verified |
|
