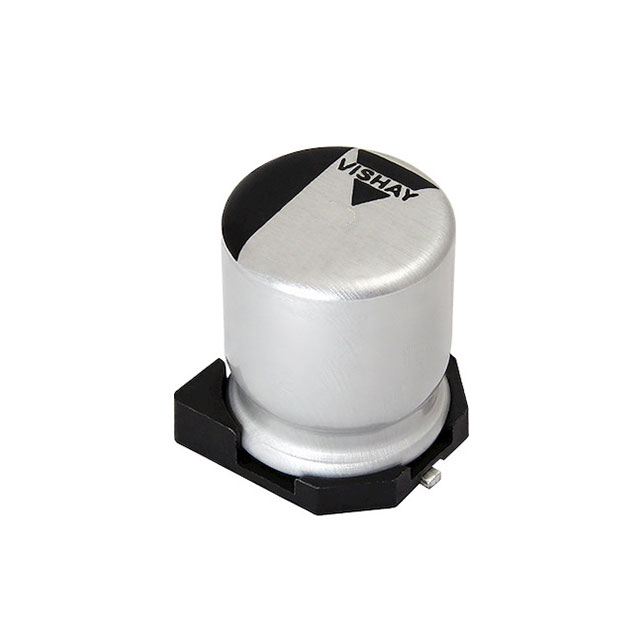

| Part number: | MAL218497601E3 |
| Description: | CAP ALUM POLY 10UF 20% 25V SMD |
| Manufacturer | Vishay BC Components |
| Encapsulation | Box |
| Quantity | 12000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Vishay BC Components" |
| Tolerance | ±20% |
| Package / Case | Radial, Can - SMD |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Mounting Type | Surface Mount |
| Type | Polymer |
| Operating Temperature | -55°C ~ 105°C |
| Applications | General Purpose |
| ESR (Equivalent Series Resistance) | 35mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Capacitance | 10 µF |
| Voltage - Rated | 25 V |
| Ripple Current @ Low Frequency | 110 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2.2 A @ 100 kHz |
|
