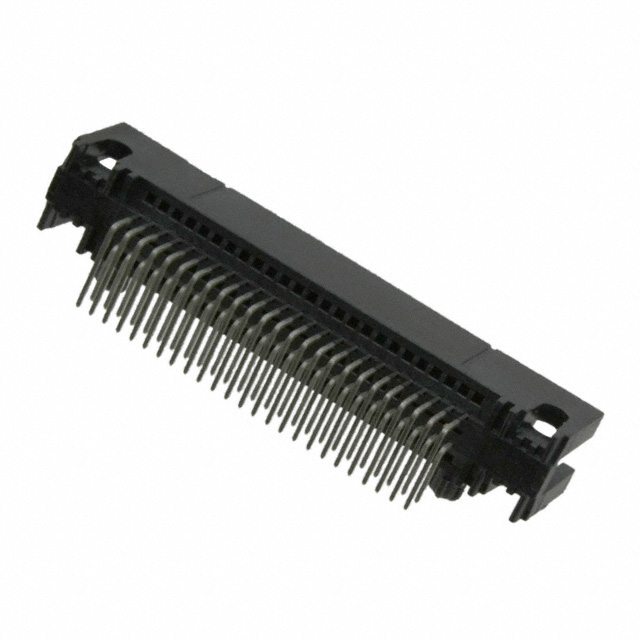

| Part number: | 81050-500203-RB |
| Description: | CONN HEADER R/A 50POS 1.27MM |
| Manufacturer | 3M |
| Encapsulation | Bulk |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "3M" |
| Features | Board Lock |
| Connector Type | Header |
| Current Rating (Amps) | 0.75A |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Style | Board to Cable/Wire |
| Operating Temperature | -55°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Pitch - Mating | 0.050" (1.27mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Post | 250.0µin (6.35µm) |
| Contact Shape | Square |
| Contact Length - Post | 0.090" (2.29mm) |
| Insulation Height | 0.310" (7.87mm) |
| Shrouding | Shrouded - 4 Wall |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Contact Length - Mating | 0.140" (3.56mm) |
|
