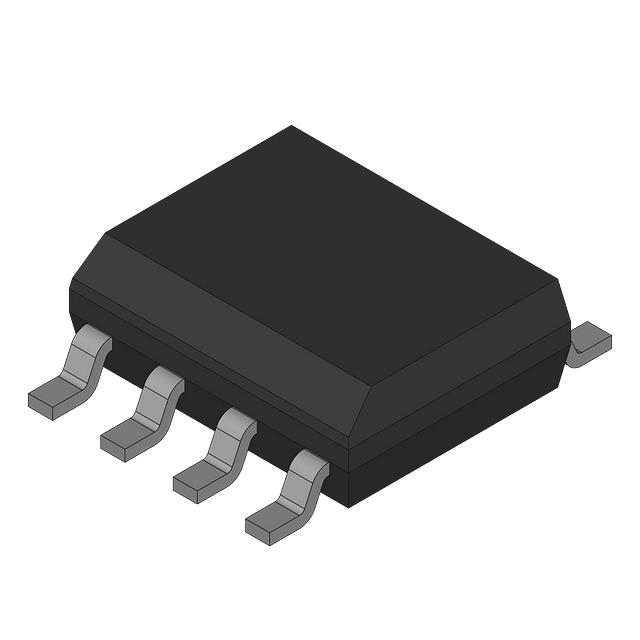

| Part number: | ISL6594DCBZ |
| Description: | HALF BRIDGE BASED MOSFET DRIVER |
| Manufacturer | Intersil |
| Encapsulation | Tube |
| Quantity | 98 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Intersil" |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | 0°C ~ 125°C (TJ) |
| Voltage - Supply | 6.8V ~ 13.2V |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 36 V |
| Supplier Device Package | 8-SOIC |
| Rise / Fall Time (Typ) | 26ns, 18ns |
| Channel Type | Synchronous |
| Driven Configuration | Half-Bridge |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Current - Peak Output (Source, Sink) | 1.25A, 2A |
| DigiKey Programmable | Not Verified |
|
