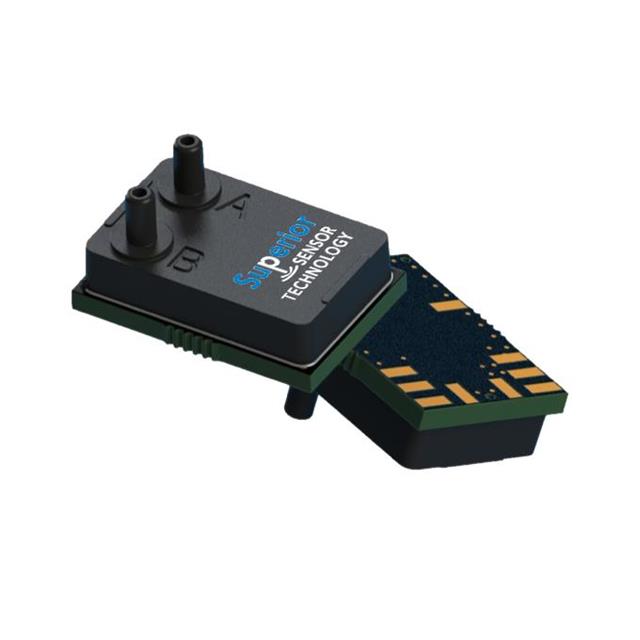

| Part number: | SP210-SM02-T |
| Description: | SENSOR 0.36PSID 0.08" 16BIT |
| Manufacturer | Superior Sensor Technology |
| Encapsulation | Tray |
| Quantity | 64 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Superior Sensor Technology" |
| Features | Temperature Compensated |
| Package / Case | 11-SMD, No Lead, Top Port |
| Output Type | I2C, SPI |
| Mounting Type | Surface Mount |
| Output | 16 b |
| Operating Pressure | ±0.04PSI ~ ±0.36PSI (±0.25kPa ~ ±2.5kPa) |
| Pressure Type | Differential |
| Accuracy | ±0.1% |
| Operating Temperature | 0°C ~ 50°C |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply | 2.8V ~ 3.5V |
| Port Size | Male - 0.08" (2.13mm) Tube, Dual |
| Applications | Board Mount |
| Port Style | Barbless |
| Maximum Pressure | ±1.45PSI (±9.97kPa) |
|
