| Part number: | ACS120-7SB |
| Description: | TRIAC SENS GATE 700V 2A DPAK |
| Manufacturer | STMicroelectronics |
| Encapsulation | Tube |
| Quantity | 75 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "STMicroelectronics" |

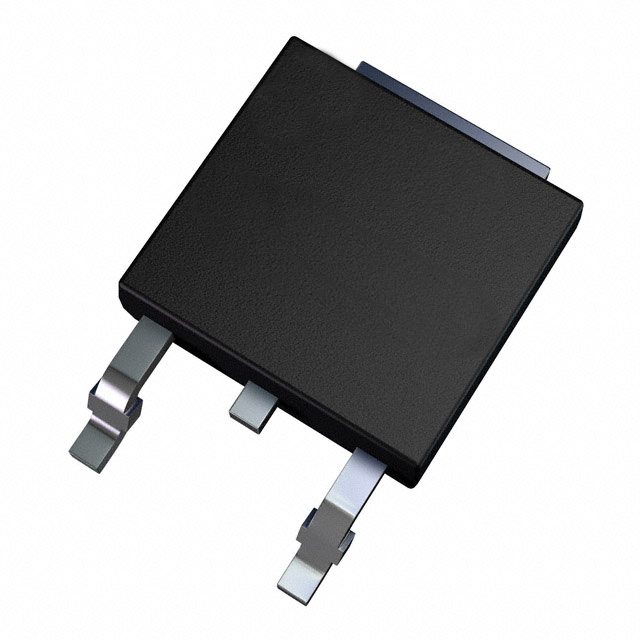

| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Mounting Type | Surface Mount |
| Triac Type | Logic - Sensitive Gate |
| Configuration | Single |
| Operating Temperature | -30°C ~ 125°C (TJ) |
| Current - Hold (Ih) (Max) | 45 mA |
| Current - Gate Trigger (Igt) (Max) | 10 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 20A, 11A |
| Voltage - Gate Trigger (Vgt) (Max) | 1 V |
| Supplier Device Package | DPAK |
| Current - On State (It (RMS)) (Max) | 2 A |
| Voltage - Off State | 700 V |
|
