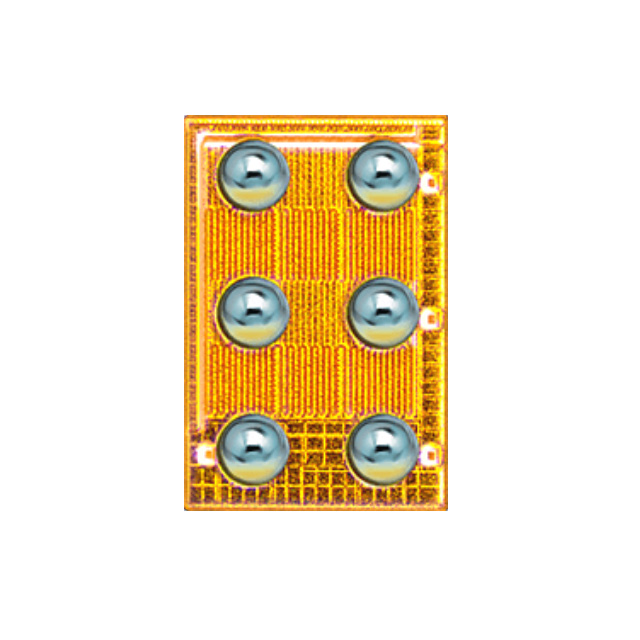

| Part number: | EPC2216 |
| Description: | GANFET N-CH 15V 3.4A DIE |
| Manufacturer | EPC |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "EPC" |
| Package / Case | Die |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Technology | GaNFET (Gallium Nitride) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 3.4A (Ta) |
| Rds On (Max) @ Id, Vgs | 26mOhm @ 1.5A, 5V |
| Vgs(th) (Max) @ Id | 2.5V @ 1mA |
| Supplier Device Package | Die |
| Grade | Automotive |
| Drive Voltage (Max Rds On, Min Rds On) | 5V |
| Vgs (Max) | +6V, -4V |
| Drain to Source Voltage (Vdss) | 15 V |
| Gate Charge (Qg) (Max) @ Vgs | 1.1 nC @ 5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 118 pF @ 7.5 V |
| Qualification | AEC-Q101 |
|
