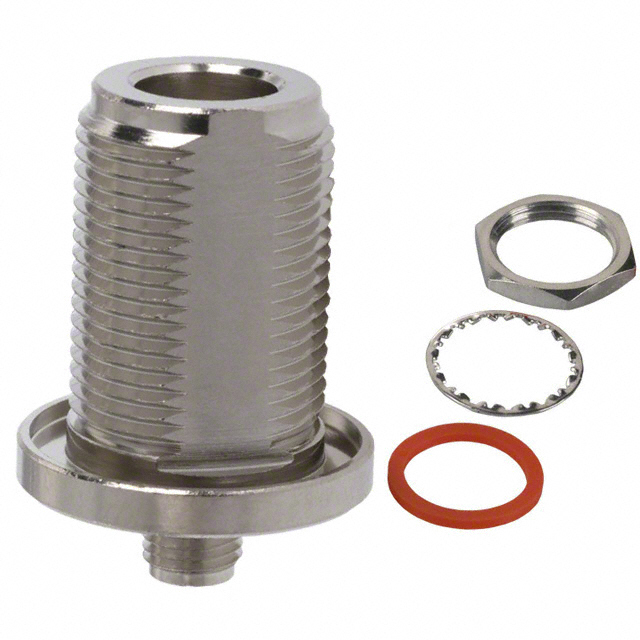

| Part number: | 242125 |
| Description: | CONN ADAPT SMA JACK TO N JACK |
| Manufacturer | Connex (Amphenol RF) |
| Encapsulation | Bag |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Connex (Amphenol RF)" |
| Impedance | 50 Ohms |
| Mounting Type | Panel Mount |
| Style | Straight |
| Convert From (Adapter End) | SMA Jack, Female Socket |
| Convert To (Adapter End) | N Jack, Female Socket |
| Operating Temperature | -65°C ~ 165°C |
| Fastening Type | Threaded, Threaded |
| Includes | 4 pcs - 1 Connector, 1 Gasket, 1 Lockwasher, 1 Nut |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Mounting Feature | Bulkhead |
| Adapter Series | SMA to N |
| Adapter Type | Jack to Jack |
| Center Gender | Female to Female |
| Conversion Type | Between Series |
| Body Material | Brass |
| Mating Cycles | 500 |
| Center Contact Material | Beryllium Copper |
| Body Finish | Nickel |
| Center Contact Plating | Gold |
| Frequency - Max | 11 GHz |
|
