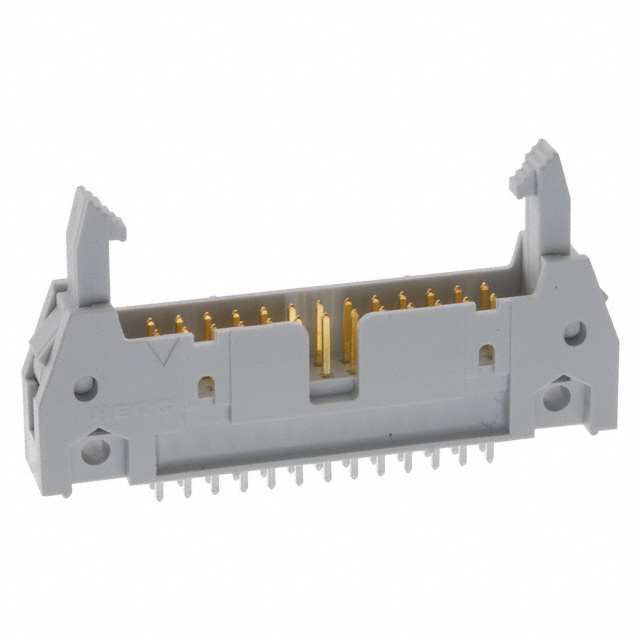

| Part number: | 71918-126LF |
| Description: | CONN HEADER VERT 26POS 2.54MM |
| Manufacturer | Storage & Server IO (Amphenol Communications Solutions) |
| Encapsulation | Tube |
| Quantity | 9 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Storage & Server IO (Amphenol Communications Solutions)" |
| Features | Keying Slot, Mounting Flange |
| Connector Type | Header |
| Mounting Type | Through Hole |
| Number of Positions | 26 |
| Number of Rows | 2 |
| Style | Board to Cable/Wire |
| Contact Type | Male Pin |
| Fastening Type | Latch Lock/Eject Hooks |
| Number of Positions Loaded | All |
| Termination | Solder |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Phosphor Bronze |
| Insulation Color | Gray |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Finish - Mating | Gold, GXT™ |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Post | 78.7µin (2.00µm) |
| Contact Shape | Square |
| Contact Length - Post | 0.114" (2.90mm) |
| Insulation Height | 0.685" (17.40mm) |
| Shrouding | Shrouded - 4 Wall |
| Insulation Material | Thermoplastic, Glass Filled |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Contact Length - Mating | 0.228" (5.80mm) |
|
